* Description: Install SVN server and repository on RHEL server
* Date: 05:50 PM EST, 04/27/2018
****************************************************************
<1> Apache Subversion is a software versioning and revision control system distributed as open source under the Apache License:
|
|__ o. Install Apache as web server, since SVN needs web console.
|
|__ o. Install SVN software, and setup SVN server.
|
|__ o. Create SVN repository.
<2> In RHEL, the httpd package provides the Apache HTTP Server. Run below command as sudo to verify if httpd package is installed:
|
|__ $ rpm -q httpd
>> package httpd is not installed
<3> Install Apache by following command as sudo:
|
|__ $ yum install httpd
Loaded plugins: downloadonly, security
Bad id for repo: root@m1crh226 adm-nnassif, byte = @ 4
mahc_rhel5-els_repo | 951 B 00:00
mahc_rhel5-i386_repo | 951 B 00:00
mahc_rhel5_repo | 1.2 kB 00:00
rhel5s-x86_64-epel | 2.5 kB 00:00
rhel5s-x86_64-optional | 2.5 kB 00:00
rhel5s-x86_64-rhn-updates | 2.5 kB 00:00
rhel5s-x86_64-rpmfusion-free-updates | 2.5 kB 00:00
rhel5s-x86_64-rpmfusion-nonfree-updates | 2.5 kB 00:00
rhel5s-x86_64-spacewalk | 2.5 kB 00:00
rhel5s-x86_64-spacewalk-client | 2.5 kB 00:00
rhel5s-x86_64-supplementary | 2.5 kB 00:00
rhel5s-x86_64-virtualization | 2.5 kB 00:00
Setting up Install Process
Resolving Dependencies
--> Running transaction check
---> Package httpd.i386 0:2.2.3-92.el5_11 set to be updated
mahc_rhel5-els_repo/filelists | 3.8 MB 00:00
mahc_rhel5-i386_repo/filelists | 3.0 MB 00:00
mahc_rhel5_repo/filelists | 34 MB 00:01
rhel5s-x86_64-epel/filelists_db | 3.7 MB 00:00
rhel5s-x86_64-optional/filelists_db | 2.1 MB 00:00
rhel5s-x86_64-rhn-updates/filelists_db | 26 MB 00:01
rhel5s-x86_64-rpmfusion-free-updates/filelists_db | 54 kB 00:00
rhel5s-x86_64-rpmfusion-nonfree-updates/filelists_db | 11 kB 00:00
rhel5s-x86_64-spacewalk/filelists_db | 13 kB 00:00
rhel5s-x86_64-spacewalk-client/filelists_db | 13 kB 00:00
rhel5s-x86_64-supplementary/filelists_db | 2.1 MB 00:00
rhel5s-x86_64-virtualization/filelists_db | 209 kB 00:00
--> Processing Dependency: libpcre.so.0 for package: httpd
---> Package httpd.x86_64 0:2.2.3-92.el5_11 set to be updated
--> Running transaction check
---> Package pcre.i386 0:6.6-9.el5 set to be updated
--> Finished Dependency Resolution
Dependencies Resolved
========================================================================================================================================================================
Package Arch Version Repository Size
========================================================================================================================================================================
Installing:
httpd i386 2.2.3-92.el5_11 mahc_rhel5-i386_repo 1.2 M
httpd x86_64 2.2.3-92.el5_11 mahc_rhel5-els_repo 1.3 M
Installing for dependencies:
pcre i386 6.6-9.el5 mahc_rhel5_repo 118 k
Transaction Summary
========================================================================================================================================================================
Install 3 Package(s)
Upgrade 0 Package(s)
Total download size: 2.6 M
Is this ok [y/N]: y
Downloading Packages:
(1/3): pcre-6.6-9.el5.i386.rpm | 118 kB 00:00
(2/3): httpd-2.2.3-92.el5_11.i386.rpm | 1.2 MB 00:00
(3/3): httpd-2.2.3-92.el5_11.x86_64.rpm | 1.3 MB 00:00
------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Total 6.5 MB/s | 2.6 MB 00:00
Running rpm_check_debug
Running Transaction Test
Finished Transaction Test
Transaction Test Succeeded
Running Transaction
Installing : pcre 1/3
Installing : httpd 2/3
Installing : httpd 3/3
Installed:
httpd.i386 0:2.2.3-92.el5_11 httpd.x86_64 0:2.2.3-92.el5_11
Dependency Installed:
pcre.i386 0:6.6-9.el5
Complete!
<4> After Apache package installed, run below command to verify:
|
|__ $ rpm -q httpd
>> httpd-2.2.3-92.el5_11
<5> Checking if Apache server up and running by either of the command:
|
|__ $ /etc/init.d/httpd status
|
|__ $ service httpd status
>> httpd is stopped
<6> Some of the RHEL system enables SELinux[Security Enhanced]. If the feature turned on, before starting Apache , please take reference for addition step:
|
|__ $ sestatus
>> SELinux status: disabled
<7> Start Apache server:
|
|__ $ service httpd start
|
| >> Starting httpd: [ OK ]
|
|
|__ $ service httpd status
>> httpd (pid 987) is running...
<8> The URL of Apache landing page is https:localhost:
|
|__ o. The default html file is /var/www/index.html
<9> Install SVN software and module mod_dav_svn. The purpose of "mod_dav_svn" is communicating SVN with Apache to display the repository directory on Web GUI:
|
|__ $ yum install mod_dav_svn subversion
Loaded plugins: downloadonly, security
Bad id for repo: root@m1crh226 adm-nnassif, byte = @ 4
Setting up Install Process
Package subversion-1.6.11-12.el5_10.x86_64 already installed and latest version
Package subversion-1.6.11-12.el5_10.i386 already installed and latest version
Resolving Dependencies
--> Running transaction check
---> Package mod_dav_svn.i386 0:1.6.11-12.el5_10 set to be updated
---> Package mod_dav_svn.x86_64 0:1.6.11-12.el5_10 set to be updated
--> Finished Dependency Resolution
Dependencies Resolved
========================================================================================================================================================================
Package Arch Version Repository Size
========================================================================================================================================================================
Installing:
mod_dav_svn i386 1.6.11-12.el5_10 mahc_rhel5-i386_repo 79 k
mod_dav_svn x86_64 1.6.11-12.el5_10 mahc_rhel5-els_repo 79 k
Transaction Summary
========================================================================================================================================================================
Install 2 Package(s)
Upgrade 0 Package(s)
Total download size: 158 k
Is this ok [y/N]: y
Downloading Packages:
(1/2): mod_dav_svn-1.6.11-12.el5_10.i386.rpm | 79 kB 00:00
(2/2): mod_dav_svn-1.6.11-12.el5_10.x86_64.rpm | 79 kB 00:00
------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Total 571 kB/s | 158 kB 00:00
Running rpm_check_debug
Running Transaction Test
Finished Transaction Test
Transaction Test Succeeded
Running Transaction
Installing : mod_dav_svn 1/2
Installing : mod_dav_svn 2/2
Installed:
mod_dav_svn.i386 0:1.6.11-12.el5_10 mod_dav_svn.x86_64 0:1.6.11-12.el5_10
Complete!
<10> After SVN package installed, then starting config SVN server. Firstly, creating SVN parent folder, which is equal to root volume of a system:
|
|__ $ mkdir /var/www/svn
chmod 755 /var/www/svn
<11> Under Apache server folder, there is configuration file for SVN. By which, telling the SVN metadata to Apache:
|
|__ $ vi /etc/httpd/conf.d/subversion.conf
#========== Original =============
# LoadModule dav_svn_module modules/mod_dav_svn.so
# LoadModule authz_svn_module modules/mod_authz_svn.so
#
# <Location /svn>
# DAV svn
# SVNParentPath /var/www/svn
#
# Limit write permission to list of valid users.
# <LimitExcept GET PROPFIND OPTIONS REPORT>
# # Require SSL connection for password protection.
# # SSLRequireSSL
#
# AuthType Basic
# AuthName "Subversion repositories"
# AuthUserFile /etc/svn-auth-users
# Require valid-user
# </LimitExcept>
# </Location>
#=========== After re-configurion ==========
<Location /svn>
DAV svn
SVNParentPath /var/www/svn
<LimitExcept GET PROPFIND OPTIONS REPORT>
AuthType Basic
AuthName "Subversion repositories"
# Create repository username/password, and saving the credential enclosed this file:
AuthUserFile /etc/svn-auth-users
# Saving repository user permission enclosed this access control file:
AuthzSVNAccessFile /etc/svn-access-control
Require valid-user
</LimitExcept>
</Location>
#=========== Create SVN repository on a regular volume ==========
<Location /repo_name>
DAV svn
SVNPath /u01/repo_name
<LimitExcept GET PROPFIND OPTIONS REPORT>
AuthType Basic
AuthName "Subversion repositories"
AuthUserFile /etc/svn-auth-users
AuthzSVNAccessFile /etc/svn-access-control
Require valid-user
</LimitExcept>
</Location>
<12> Creating repository username. For example, "test_user" is the username:
|
|__ $ htpasswd -m /etc/svn-auth-users test_user
|
| New password: <typeing in password>
| Re-type new password: <typeing in password again>
| Adding password for user test_user
|
|
|
|
|_ $ cat /etc/svn-auth-users
test_user:$apr1$opiTm...$RxRjzf.tj.q/cQBvcba/y0
<13> Creating SVN repository:
|
|__ $ pwd
|
| /var/www/svn
|
|
|__ $ svnadmin create testrepo
|
|
|__ $ ls -ltr
|
| drwx------ 6 root root 4096 Apr 12 12:38 testrepo
|
|
|__ $ chown -R apache.apache testrepo
|
|
|__ $ ls -ltr
|
| drwx------ 6 apache apache 4096 Apr 12 12:38 testrepo
|
|
|__ $ service httpd restart
<14> Assigning permission to repository users/roles by copying following content within repo access control file:
|
|__ $ cp /var/www/svn/testrepo/conf/authz /etc/svn-access-control
|
|
|__ $ vi /etc/svn-access-control
[groups]
admin=test_user
[/]
@admin=rw
[testrepo:/]
test_user=rw
<15> Modify SVN repository config file to limit anonymous control by uncommenting below 2 parameters:
|
|__ $ vi /var/www/svn/testrepo/conf/svnserve.conf
## Disable anonymous access ##
anon-access = none
## Enable access control ##
authz-db = authz
<16> Restart Apache:
|
|__ $ service httpd restart
Stopping httpd: [ OK ]
Starting httpd: [ OK ]
<17> Create trunk, branches and tags structure under testrepo:
|
|__ o. Create “template” directories with following command:
| |
| |__ $ mkdir -p /tmp/svn-structure-template/{trunk,branches,tags}
|
|
|
|
|__ o. Then import template to project repository using “svn import” command:
|
|__ $ svn import -m 'Initial import' /tmp/svn-structure-template/ http://10.234.92.21/svn/testrepo/
Adding /tmp/svn-structure-template/trunk
Adding /tmp/svn-structure-template/branches
Adding /tmp/svn-structure-template/tags
Committed revision 1.

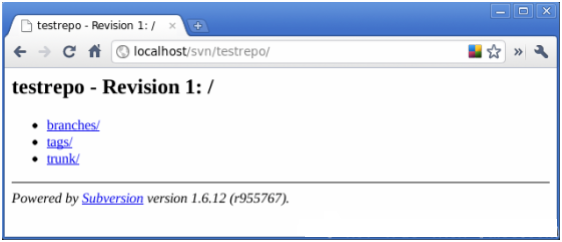

<18> Now, the SVN parent folders should be hooked with Web GUI on browser - http://10.234.92.21/svn/testrepo/, or use TortoiseSVN repo-brower:
<19> Reference:
|
|__ o. SVN Installation - https://www.if-not-true-then-false.com/2010/install-svn-subversion-server-on-fedora-centos-red-hat-rhel/
|
|__ o. SELinux Status Verification - https://www.centos.org/docs/5/html/5.1/Deployment_Guide/sec-selinux-status-viewing.html
|
|__ o. REHL Apache - https://access.redhat.com/documentation/en-us/red_hat_enterprise_linux/6/html/managing_confined_services/chap-managing_confined_services-the_apache_http_server
|
|__ o. SVN Permission - http://svnbook.red-bean.com/en/1.7/svn.serverconfig.pathbasedauthz.html
